High-performance reactors, hypersonic aircraft, and spacecraft all encounter intense heat that is significantly hotter than molten lava when they reenter Earth’s atmosphere. Researchers have been seeking the “dream insulator” for decades: one that can withstand extremely high temperatures, block all types of heat transmission, be lightweight, and scale for industrial use. According to reports, a research team from Tsinghua University in China has created new carbon nanotube insulation that withstands extreme heat upto 4,712°F (2,600°C) while preventing radiation, gas transfer, and heat conduction.

Above 2,732°F (1,500°C), conventional insulation materials start to degrade or convey excessive heat. With applications in advanced manufacturing, energy, and aerospace, this discovery has the potential to transform how industries manage extremely hot conditions.

What Makes This Carbon Nanotube Insulation Different from Existing Materials?

The super-aligned new carbon nanotube insulation withstands extreme heat and is used to create the novel-designed insulation. Like plucking silk threads, researchers cultivate vertical arrays of nanotubes before “drawing” them into thin sheets. The material’s remarkable qualities come from the way these sheets are coiled or stacked to create multilayered, porous structures.

As new carbon nanotube insulation withstands extreme heat, the following are essential characteristics that set this material apart:

Extremely low heat conductivity:

• At room temperature, 0.004 W/mK.
• At 2,600°C, 0.03 W/mK is significantly lower than that of typical insulators, such as graphite felt.

Lightweight density:

• Ranges from 5 to 100 kg/m³, making it simple to incorporate into the aircraft industry and other sectors where weight is essential.

Heat resistance:

• Able to withstand hundreds of heating/cooling cycles and extremely high temperatures.

Blocking radiation:

• Infrared light is absorbed and dispersed by nanotubes, which trap thermal photons.

Scalability:

• It is possible to create sheets that are up to 550 mm broad and maybe hundreds of meters long.

The new material has the potential to be revolutionary due to its stability, performance, and scalability.

Also Read: New Study Reveals Best Times To Use Electricity To Slash Carbon Emissions

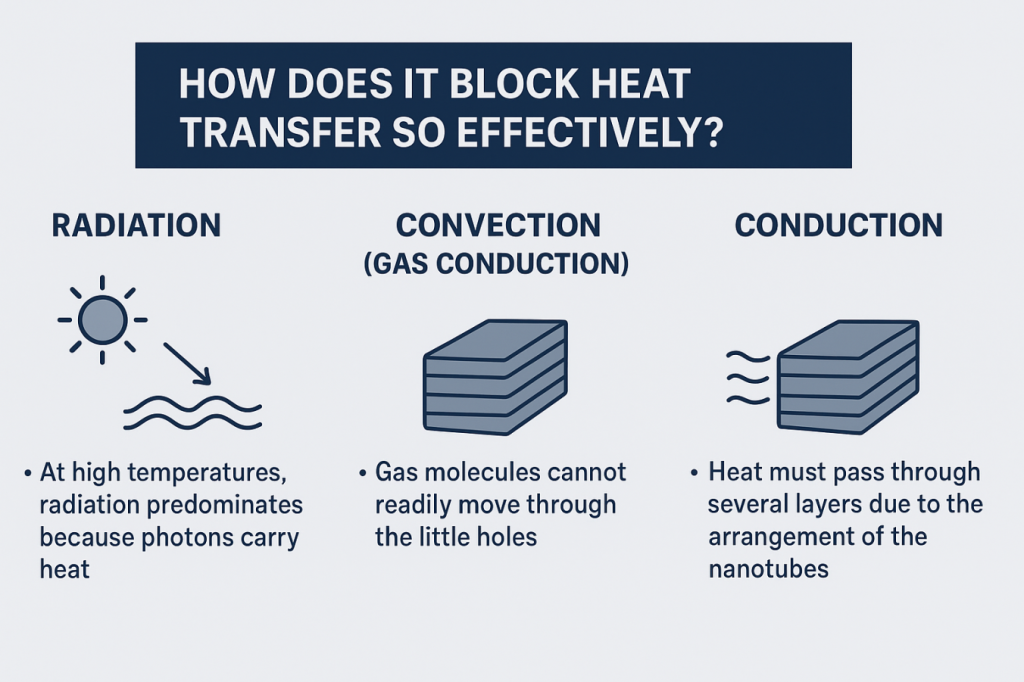

How Does It Block Heat Transfer So Effectively?

Dissecting the three primary methods of heat transfer—radiation, convection (gas conduction), and conduction—helps explain the discovery.

Conduction through solids:

• Heat must pass through several layers due to the arrangement of the nanotubes rather than along the tubes.
• Heating vibrations, or phonons, have a hard time passing through each tube since they are just 10–20 nanometers in diameter and separated by space.

Gas conduction:

• Gas molecules cannot readily move through the little holes.
• Instead, they lose energy and bounce within (the Knudsen effect), which lowers conduction.

Radiation:

• At high temperatures, radiation predominates because photons carry heat.
• Because of their electronic structure (van Hove singularities), nanotubes have a significant absorption and scattering of infrared radiation.
• Layers stacked at different angles trap radiation, which significantly lowers heat transfer.

Said, this insulation is significantly more effective than conventional materials since it stops heat in all directions.

Also Read: Scientists Develop Sustainable Carbon Capture Technique Using Shrimp Waste

Where Can This Material Be Applied in the Real World?

Many industries that work in extremely hot or cold conditions may profit from this idea.

Airspace:

• Shielding for spacecraft reentry.
• Protection for airplanes operating at hypersonic speeds.
• Thermal barriers in jet engines.

Energy:

• Reactors that use fusion.
• Nuclear power plants.
• Gas turbines with high temperatures.

Industrial manufacturing:

• Smelters, furnaces, and kilns.
• Insulation that is lightweight for industrial procedures that involve high temperatures.

Electronics:

• Thermal control is crucial in situations where heat resistance and space are essential.
• The material’s ability to wrap around uneven surfaces and its flexibility enhance its practical usage.

Also Read: New Satellite Hyperspectral Tech Enhances Global Climate Change Tracking

How Does It Compare with Current High-Temperature Insulators?

The new carbon nanotube insulation withstands extreme heat, in contrast to graphite felt, a material that is frequently used, as shown in the following table:

This comparison illustrates how the nanotube material may outperform current insulation in various sectors.

Also Read: Harnessing The Sun: Building A Sustainable Solar Future

What Challenges Still Need to Be Solved?

Despite the potential, several obstacles must be overcome before the insulation is widely used:

• Oxidation resistance: At high temperatures, carbon nanotubes can break down in oxygen. To make sure the material endures in outdoor settings, researchers intend to apply protective coatings.
• Cost and scalability: While vast sheets may be made, consistent quality and a reduction in production costs are necessary for widespread industrial adoption.
• Durability under stress: Materials used in the energy and aerospace sectors must be able to withstand mechanical stress, chemical exposure, and high temperatures. Long-term research will be required.

Nanotube insulation has the potential to be one of the most significant materials of the upcoming generation if these issues are resolved.

Also Read: European Cities Harness AI To Boost Energy Efficiency And Cut Consumption, Says ICLEI

Frequently Asked Questions (FAQs)

Q1: How hot is 2,600°C (4,712°F) in relation to normal temperatures?

That is hotter than the surface of Venus (475°C) and hotter than molten lava (1,000–1,200°C). It is near the melting temperatures of numerous metals, including nickel (1,455°C) and iron (1,538°C).

Q2: Is it possible for consumer goods to use this insulation?

Not right away. At the moment, the material is intended for use in aerospace and harsh industrial settings. However, it may eventually have an impact on electronics and specialized consumer gadgets as production prices decline.

Q3: What makes carbon nanotubes so good at preventing heat transfer?

Their nanostructure enables them to absorb radiation effectively, while the tiny pores restrict gas conduction, and the layered architecture reduces solid conduction. They basically cover every aspect of heat transport.
